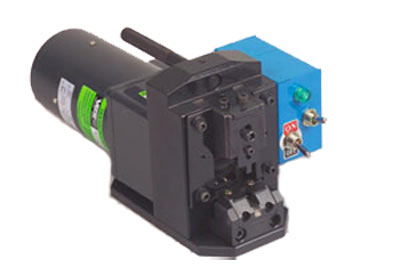

CH-8501

能夠像電子裝配一樣加工，可壓普通PC頭、英國頭、網路PC接頭。

完全無噪音操作。

操作中極少發生誤差，準確度高。

佔極少空間，可輕易再安裝。

換模具只需三分鐘。

Capable of pressing general PC heads and british style PC heads, as well as electronic assembling.

Entirely noiseless operation.

Minimum loss during operation.

Taking a small space, easily relocate.

It takes merely three minutes to replace the moulds.

機　　型　MODEL	CH-8501 CH-8501L
外觀尺寸　DIMENSION	330mmX160mmX160mm
重量　WEIGHT	12Kgs
電源 POWERSUPPLY	AC 110V / 220V50/60HZ
出力 STROKESTRENGTH	CH-8501L 　 RPM(每分鐘轉數) 72 : 93Kgs / 25K (齒輪比) CH-8501 　 RPM(每分鐘轉數) 90 : 74Kgs / 20K (齒輪比) 　　　　　　 RPM(每分鐘轉數)100 : 54Kgs / 18K (齒輪比)
